Overview

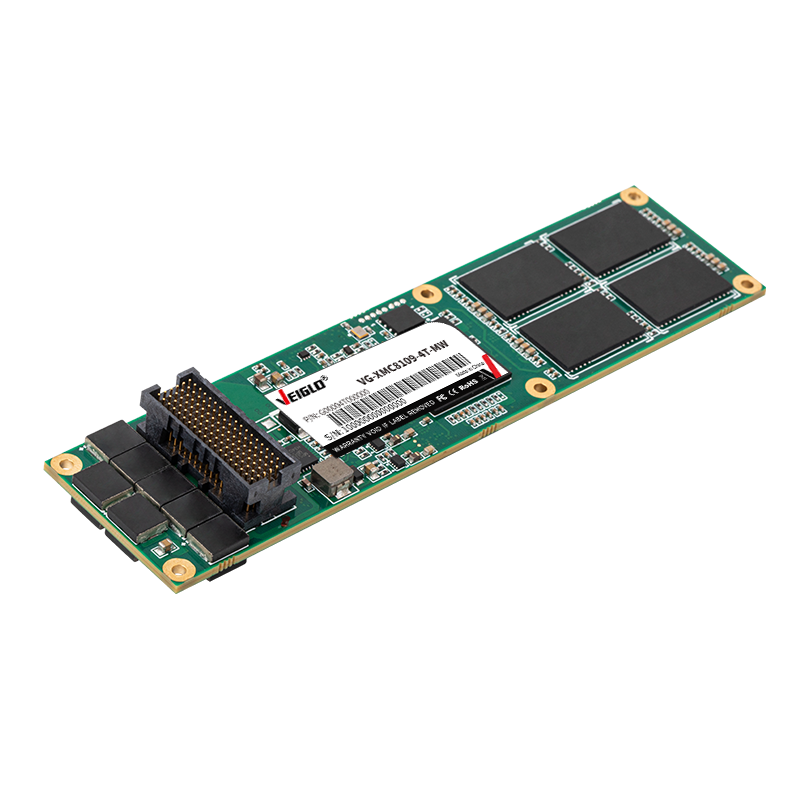

VEIGLO® M100 Series Rugged M.3 NVMe SSD product is using XMC connector and M.3 product form factor, which is special designed for harsh environments applications with continuous vibration and should ensuring high reliability and with high stable data storage solutions.
Specification：
| Physical | Form Factor： | XMC rugged M.3 |
| Interface： | PCIe 3.0 x 4 | |
| Dimension： | 130mm × 33mm × 13.37mm | |
| Weight： | ≈40g | |
| Capacity | MLC： | 960GB，1920GB，3840GB |
| Performance | Sequential Read | 2500MB/s |
| Sequential Write | 2000MB/s | |
| Random Read(4K) IOPS | 290k | |
| Random Write(4K) IOPS： | 205k | |
| Electrical | Power Supply | 12V±5%（Max 1.5A） |
| Power Consumption | Active: ≤12W | |
| Idle: ≤3W | ||
| Temperature | Operating Temperature | W-Temperature:-40℃～85℃ |
| Optional W-Temperature:-55℃～85℃ | ||
| Storage Temperature | -55～95℃ | |
| Humidity | 5%～95%（No Condensing） | |
| Vibration | 15g(10～2000Hz) | |
| Shock | 1500g/0.5ms | |
| Reliability | MTBF: | 2000000hrs |
| Total Bytes Written | MLC：3000～5000 times | |
| Optional Functions | Secure Erase | ● |
| Quick Erase | ● | |
| AES-256bit Encryption | ||
| Physical Destruction | ||
| Remarks: |
1. The speed performance is related to the SSD capacity and test environments. 2. Power consumptions is related to the SSD capacity and test environments. 3. The marked capacity is the NAND Flash’s capacity, and the real available capacity will be different in different application environments, normally is around 80%~90% marked capacity. |
|

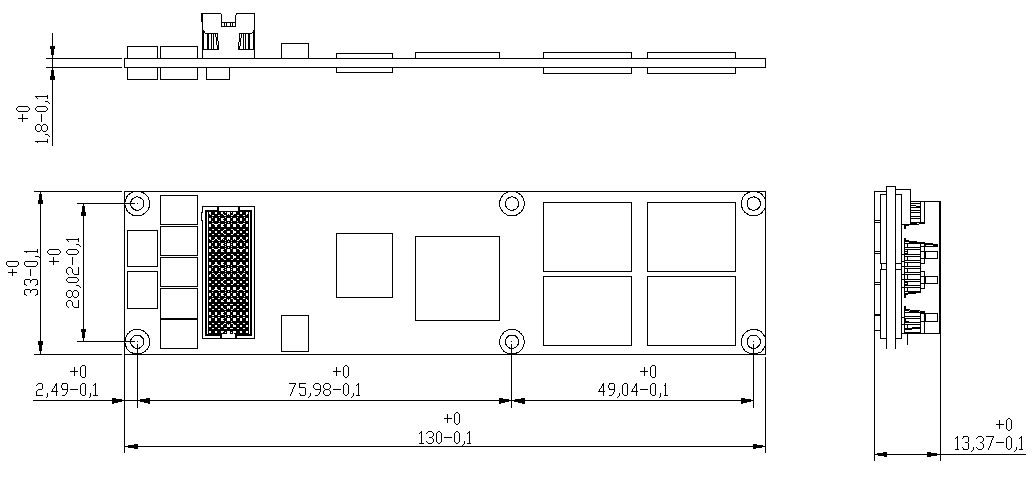

尺寸图：
订购信息：
| Model No. | Flash Type | Capacity | Operating Temperature |
| VG-XMC8109-1T-MW | MLC | 960GB | -40℃~85℃ |
| VG-XMC8109-2T-MW | MLC | 1920GB | -40℃~85℃ |
| VG-XMC8109-4T-MW | MLC | 3840GB | -40℃~85℃ |
| VG-XMC8109-1T-MB | MLC | 960GB | -55℃~85℃ |
| VG-XMC8109-2T-MB | MLC | 1920GB | -55℃~85℃ |
| VG-XMC8109-4T-MB | MLC | 3840GB | -55℃~85℃ |
