3U XMC PCIe NVMe SSD

Features:
• V&G NVMe SSD Controller
• Compliant with VITA42.0、VITA42.3 standard
• Air or Cooling Conduction structure optional
• NVMe1.2.1
• PCIe 3.0 x4 (x2, x1 compatible)
• Capacity: 3.2TB and 6.4TB optional
• Support power-off protection
• Advanced Dynamic/Static Wear-leveling Algorithm.
• Built-in ECC (Error Correction Code) function.
  • Overview
  • Specification
  • Dimensions
  • Order Code
  • Applications

Overview

VEIGLO™ T100 series of ruggedized NVMe SSD modules adopt 3U structure and XMC interface to provide users with storage solutions with ultra-high performance/power consumption ratio. This is a new generation solution for various applications that have higher requirements for read and write speeds and especially for harsh environment.

Specification:

Physical Form Factor: 3U XMC
Dimension: 132.75mm*74mm*15.6mm
Weight (without conduction structure) 70g
Interface Interface P1: 1-way 4X PCIE
P2: 2-way ERASE, ERASE_LED
Capacity MLC 3.2TB, 6.4TB
Performance Sequential Read 3200MB/s
Sequential Write 3000MB/s
Random Read(4K) IOPS 760k
Random Write(4K) IOPS: 240k
Electrical Power Supply 12V±5% (Imax 4A)
Power Consumption Sequential Write≤40W Sequential Read≤25W
Idle≤10W
Temperature Operating Temperature -40℃~85℃
Storage Temperature -55℃~95℃
Humidity 5%~95%(No Condensing)
Vibration 15g(10~2000Hz)
Shock 1500g/0.5ms
Reliability MTBF: 200000hrs
Total Bytes Written MLC:3000~5000 times
Optional Functions Secure Erase
Quick Erase
AES-256bit Encryption
Physical Destruction
Remarks: 1. The speed performance is related to the SSD capacity and test environments.
2. Power consumptions is related to the SSD capacity and test environments.
3. The marked capacity is the NAND Flash’s capacity, and the real available capacity will be different in different application environments, normally is around 80%~90% marked capacity.

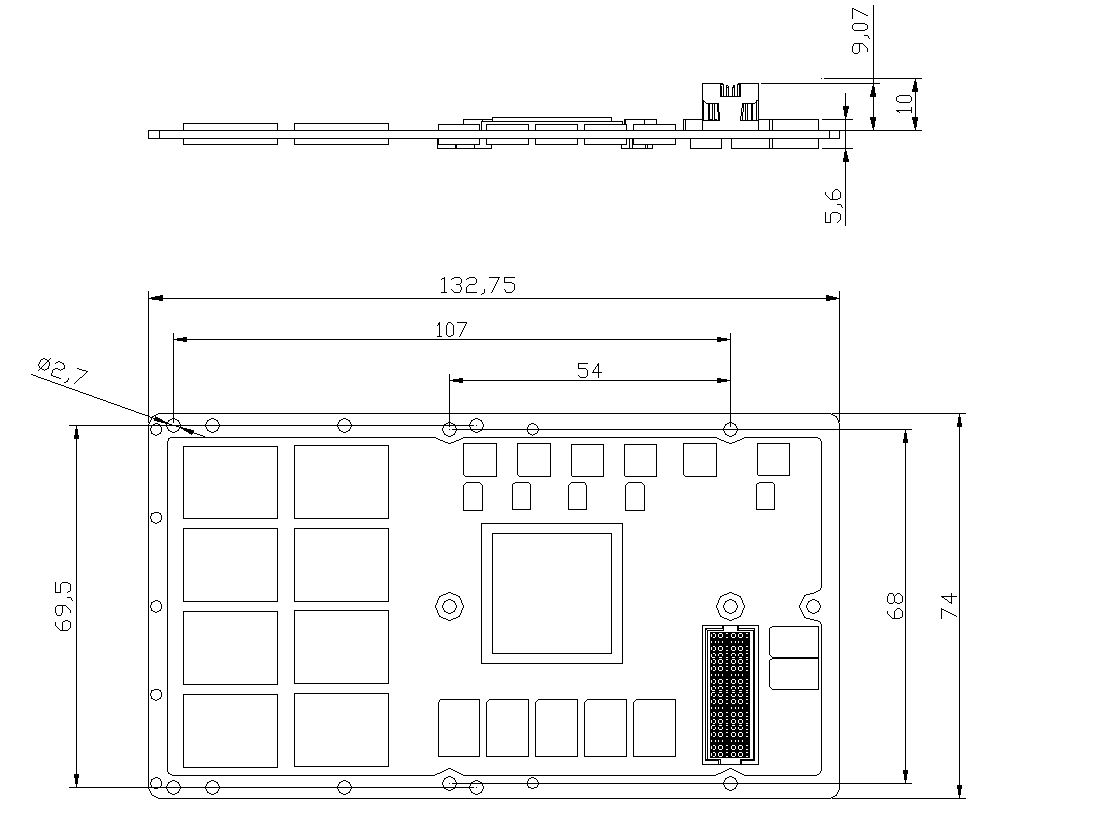

Dimensions:

Diagram

Dimensions

Order Code:

Model No. Flash Type Capacity Operating Temperature
VG-XMC8301-4T-MW MLC 3.2TB -40℃~85℃
VG-XMC8301-8T-MW MLC 6.4TB -40℃~85℃
